Configure VPN Tunnel

Plan VPN Deployment to outside VNET using an Azure VPN gateway on the remote end (IP Overlap Scenario)

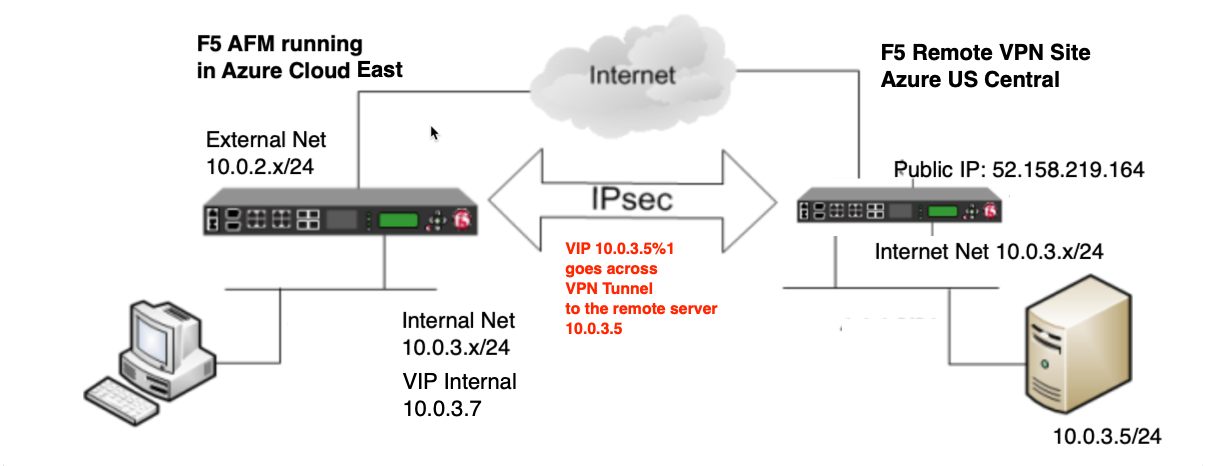

../_images/netdiagram.png
Discuss hard requirements (IKEv2 in VTI mode seems to work best with Azure currently)
  • In most F5 deployments IKEv2 is far more stable, and VTI's are the most reliable when it comes to interoperability/stability
Discuss RD functionality as well as the requirement for strict isolation being off
  • If we are dealing with IP overlaps we have to use RD's with strict isolation off. We can then use LTM with proper virtuals/snat pools to get the traffic flowing between overlapping networks for desired services much like Policy NAT, but with more flexibility.
Discuss how SNAT is required and the specifics around using SNAT to swing traffic between RD's when IP overlap is present
  • Without SNAT we cannot obfuscate the overlapping source/dest IP's between the RD's and the solution would not function.
Discuss how the virtuals will work to get traffic flowing for desired services.
  • The virtuals with cross RD snat applied allow the F5 to broker connections between overlapping IP space by virtual of being able to manipulate src/dst IP's between the RD's

Required Information

Name IP Address Note
REMOTE VPN ENDPOINT 52.158.219.164 public dest for IPSEC
EXTERNAL SELF PRIVATE 10.0.2.4 local source for IPSEC
EXTERNAL SELF PUBLIC   used as IPSEC ID
INTERNAL SELF 10.0.3.4 local source for IPSEC
INTERNAL VIP 10.0.3.7 Internal VIP (VPN)
App1 10.0.3.5 NAT target and pool (VPN)
App2 10.0.3.6 NAT target and pool (VPN)

Deploy said VPN

  1. Validate BIG-IP for VPN termination (Thiis should be completed after the previous exercise BIG-IP Base Configuration) Reference IP Table for the below IP

  2. Create RD1 for routed tunnel to exist inside of and disable strict isolation in RD0.

    create net route-domain 1 strict disabled description "RD1 for VPN Termination"
modify net route-domain 0 strict disabled

  3. Create VPN configuration

    • create IPsec policy and traffic selector for interface mode
    create net ipsec ipsec-policy VPN_IPSEC_POLICY { protocol esp mode interface ike-phase2-auth-algorithm sha256 ike-phase2-encrypt-algorithm aes256 ike-phase2-perfect-forward-secrecy modp2048 ike-phase2-lifetime 1440 ike-phase2-lifetime-kilobytes 0 }
create net ipsec traffic-selector VPN_RD1_TS { source-address 0.0.0.0/0 destination-address 0.0.0.0/0 ipsec-policy VPN_IPSEC_POLICY }
    • create IPsec peer. Replace <EXTERNAL SELF PUBLIC> with associated IP address in the table above
    create net ipsec ike-peer VPN_PEER_RD1 { remote-address 52.158.219.164 phase1-auth-method pre-shared-key phase1-hash-algorithm sha256 phase1-encrypt-algorithm aes256 phase1-perfect-forward-secrecy modp2048 preshared-key "RandomGarbage123" my-id-type address my-id-value <EXTERNAL SELF PUBLIC> peers-id-type address peers-id-value 52.158.219.164 version replace-all-with { v2 } traffic-selector replace-all-with { VPN_RD1_TS } nat-traversal on  }
    • create IPsec tunnels. Replace 10.0.2.4 with EXTERNAL SELF PRIVATE address in the table above if different.
    create net tunnels ipsec IPSEC_RD1_PROFILE traffic-selector VPN_RD1_TS defaults-from ipsec
create net tunnels tunnel IPSEC_RD1_VTI profile IPSEC_RD1_PROFILE local-address 10.0.2.4 remote-address 52.158.219.164
    • create remote route and assign to vpn route-domain. Replace x with student#...example f5student905 is 5.
    modify net route-domain 1 vlans add { IPSEC_RD1_VTI }
create net self IPSEC_RD1_SELF { address 172.31.x.2%1/24 allow-service none vlan IPSEC_RD1_VTI }
create net route IPSEC_RD1_REMOTE_NETWORK { network 10.0.3.0%1/24 gw 172.31.x.1%1 }

  4. Create SNAT Pools for Both RD's. RD0 will require the additional Azure NIC Ip outlined above. Replace x with student# For RD1...example f5student905 is 5. For RD0 this should be 10.0.3.7 if your Internal VIP matches, otherwise use the value from your table.

    create ltm snatpool RD1_SNATPOOL { members add { 172.31.x.5%1 } }
create ltm snatpool RD0_SNATPOOL { members add { 10.0.3.7 } }

  5. Create LTM Pools for SSH traffic. Replace 10.0.3.5 and 10.0.3.6 with app1 and app2 IP address from table above if different

    create ltm pool RD1_SSH members replace-all-with { 10.0.3.5%1:22 } monitor tcp_half_open
create ltm pool APP1_SSH members replace-all-with { 10.0.3.5:22 } monitor tcp_half_open
create ltm pool APP2_SSH members replace-all-with { 10.0.3.6:22 } monitor tcp_half_open

  6. Create FW Policy

    create security firewall policy SSH_VIP rules replace-all-with { ALLOW-SSH { action accept ip-protocol tcp destination { ports add { 22 } } } }

  7. Create VIP for inbound and outbound tunnel access to app servers. Replace x **with **student# For RD1...example f5student905 is 5. For RD0 this should be 10.0.3.7 if your Internal VIP matches, otherwise use the value from your table.

    create ltm virtual VS_RD1_SSH-RD0 destination 10.0.3.7:22 pool RD1_SSH source-address-translation { type snat pool RD1_SNATPOOL } profiles replace-all-with { f5-tcp-progressive } fw-enforced-policy SSH_VIP
create ltm virtual VS_APP1_SSH-RD1 destination 172.31.x.10%1:22 pool APP1_SSH source-address-translation { type snat pool RD0_SNATPOOL } profiles replace-all-with { f5-tcp-progressive } fw-enforced-policy SSH_VIP
create ltm virtual VS_APP2_SSH-RD1 destination 172.31.x.11%1:22 pool APP2_SSH source-address-translation { type snat pool RD0_SNATPOOL } profiles replace-all-with { f5-tcp-progressive } fw-enforced-policy SSH_VIP

  8. Validate solution by establishing connection to remote server across vpn tunnel

    • From APP1 or APP2. Replace 10.0.3.7 with INTERNAL VIP IP address from table above if different
    nc -v 10.0.3.7 22
ssh azureuser@10.0.3.7
    • Notify the proctor and the remote side will SSH to your 172.31.x.10/11 VIP's to validate your ingress configuration.

  9. Wrap up and delete resource group

    • browse to Azure f5student#-rg and select "Delete resource group"
    • enter f5student#-rg and select Delete to confirm deletion of resource group
    ../_images/deleterg.png
